COMPONENTS / SUBWOOFERSPRODUCT FILE / FX-12 800 D2-wib4Q

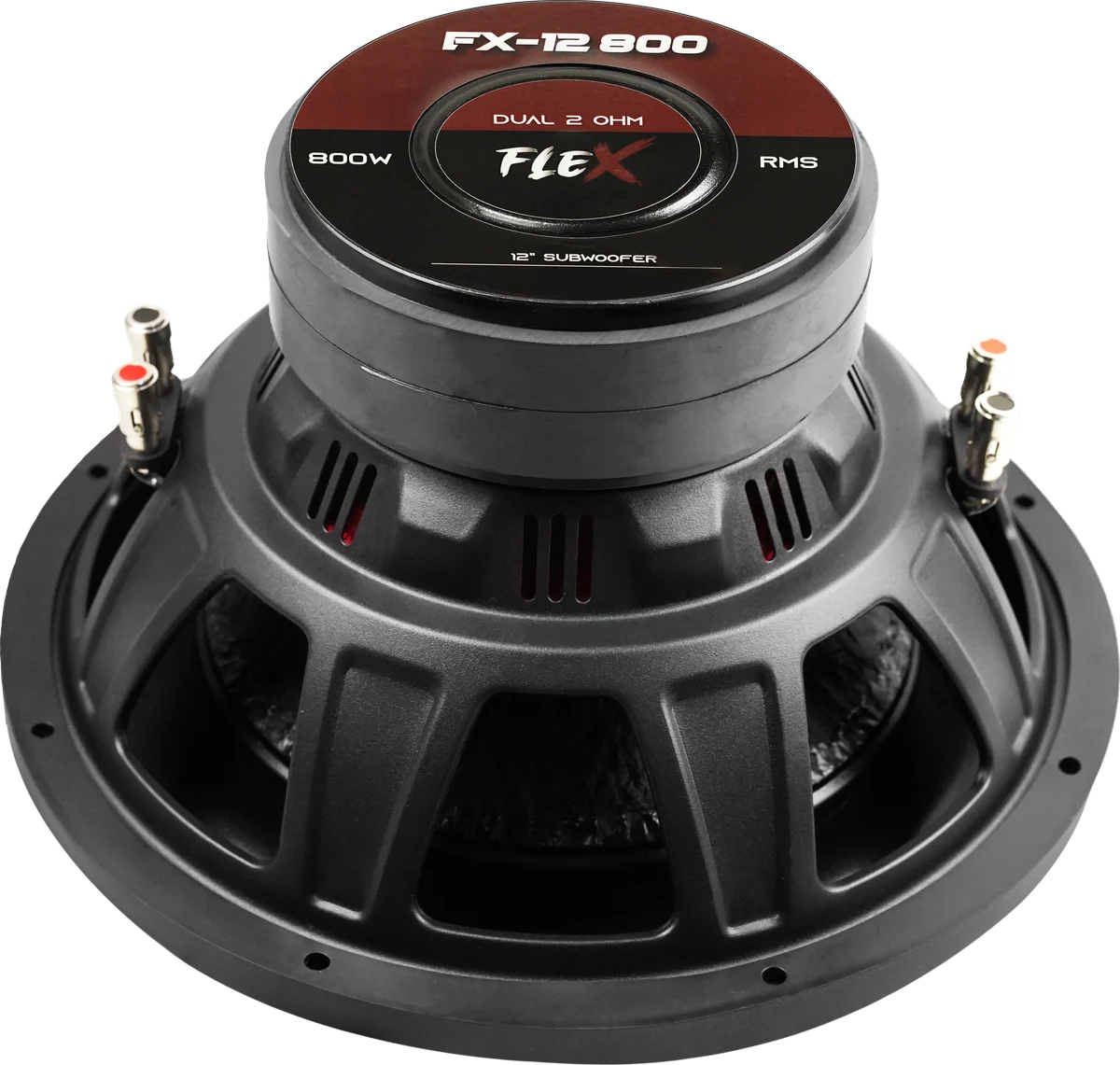

FX-12 800 D4.

Name: FX-12 800 D4
Brand: FLEX AUDIO
SKU: FX-12 800 D2-wib4Q
Price: 127.62 JOD

01 / 05

FLEX AUDIO / SUBWOOFERS

Explore the product images and available details below. Contact the FLEX AUDIO team to confirm specifications and compatibility for your build.

JOD 127.620~~JOD 134.710~~ SAVE 5%

AVAILABILITY CONFIRMED WITH YOUR ORDER

Power RMS (Watt): 800
Impedance (ohm): 1.8+1.8 / 3.6+3.6
Size (inch): 12
Voice Coil Size (inch): 2.5

DELIVERY ACROSS JORDANSelect your area at checkout to see the fee.

Download product manualPDF · 765 KB CHECK YOUR SETUP WITH US

THE DETAILS
MAKE THE DIFFERENCE.

General Specifications Feature: Details Model: FX-12 800 D2/D4 Cone Material: Pressed paper Surround Material: Foam Magnet Type: Ferrite Frame Material: Stamped steel Power RMS (Watt): 800 Power MAX (Watt): 1600 Size (inch): 12 Voice Coil Wire: CCAW Voice Coil Size (inch): 2.5 Thiele-Small Parameters Parameter: Value Xmax (mm): 14 Vas (L): 36.5 / 34.3 Re (ohm): 2+2 / 4+4 Impedance (ohm): 1.8+1.8 / 3.6+3.6 Qts: 0.49 / 0.51 BL: 18.5 / 21.5 Fs (Hz): 35 / 38 SPL (dB): 88 / 88 This specified sensitivity is not directly connected with the sound pressure in the vehicle and therefore should not be used as the sole indicator for comparison with other speakers.

FX-12 800 D4.
